Arrow Tight Waterproofing doesn't sell one-size-fits-all waterproofing packages. We diagnose the entry point, the pressure source, and the existing drainage condition — then we build the solution around what your specific property needs.
💧
Interior Drain Tile & Perimeter Channel Systems
Interior drain tile systems collect groundwater at the footing level before it enters your living space. We saw-cut the slab perimeter, excavate to the footing, install gravel-bed perforated pipe, and tie it into a sump system with battery backup — so you stay dry even during power outages.
Our sub-slab drainage systems use schedule 40 perforated PVC pipe in a stone bed, designed to handle high-volume water tables.
📞 Get a Free Drainage Quote →
🏗️

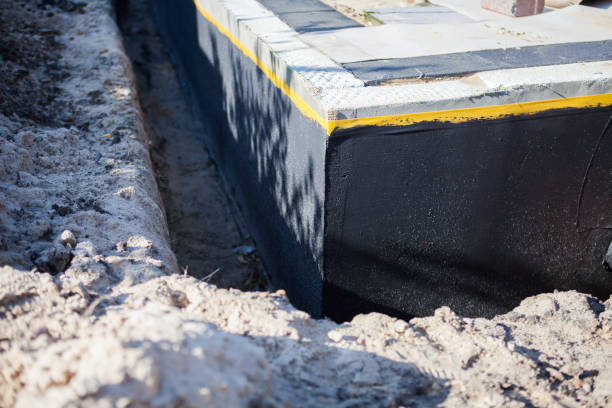

Full Excavation Exterior Waterproofing Systems
Full exterior waterproofing involves exposing your foundation to the footer depth, applying a crystalline or elastomeric waterproofing membrane, installing a geocomposite drainage mat, and placing exterior drain tile at the footing — the same specification used in new commercial construction.
This approach solves the problem at the source: water never reaches your interior wall surface.
📞 Schedule an Exterior Assessment →
🔧
Foundation Crack Injection — Polyurethane & Epoxy Systems
We inject poured-wall cracks using a port-and-backer system: surface ports are installed at 8–12 inch intervals along the crack, the surface is sealed with hydraulic cement, and two-part polyurethane or epoxy is pumped under pressure from the lowest port up — filling the crack through its full depth.
For concrete block foundation walls showing horizontal cracking or inward bowing, we pair crack repair with carbon fiber reinforcement straps anchored at the floor and rim joist.
📞 Get a Crack Injection Estimate →
🌿
Crawl Space Moisture Control: Encapsulation to Full Waterproofing
We install a minimum 20-mil reinforced poly vapor barrier over the entire crawl space floor and seal it up the walls to the sill plate — then seal all vents, install a conditioned air supply or dedicated crawl space dehumidifier, and spec a sump system if groundwater is present.
For crawl spaces with active water entry, we install a perimeter drain channel at the footer line, route it to an appropriate discharge point or sump.
📞 Schedule a Crawl Space Inspection →
⚙️
Sump Pit Construction & Dual-Pump Waterproofing Systems
A sump pump is only as reliable as its installation and backup plan. We install primary pumps — typically 1/2 to 3/4 HP cast iron submersibles with a minimum 10-year rating — alongside battery-operated backup systems that activate automatically when your primary pump fails or power goes out.
For finished basements and properties with high groundwater, we recommend a dual-pump system: a primary submersible at normal operating level and a pedestal backup set two inches higher.
📞 Get a Sump System Quote →
🪟
Window Well Drainage & Egress Window Waterproofing
Basement window wells are one of the most underestimated water entry points in residential waterproofing. When the well drain becomes clogged or the well itself is sized incorrectly for your roof drainage load, water pools against the window frame and enters through the sill, the window-to-frame joint, or the block wall directly adjacent.
Window well covers are a maintenance measure, not a waterproofing solution — but paired with proper drainage installation.
📞 Book a Window Well Assessment →
